Part#KW21-CJ3
Part # Details

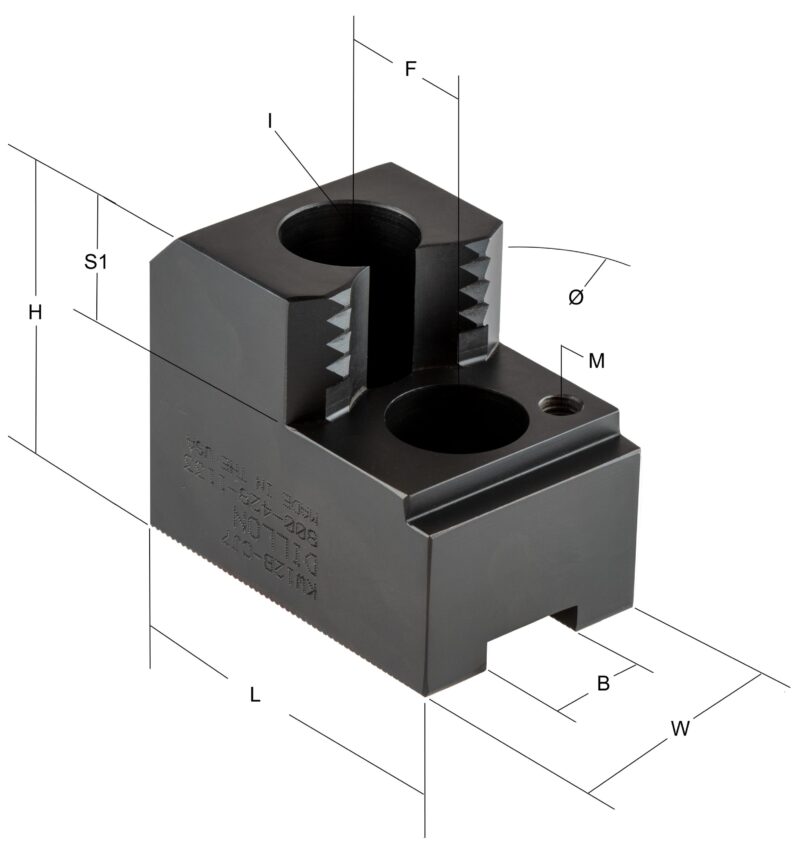

Dillon Claw Jaws are available for all chuck mounting types.
Made with hardened 8620 alloy steel.
Gripping diameters listed will vary dependent upon chuck.
| Measurements | |
| Ø-Diameter | 24 |
| L-Length | 7.205 |
| H-Height | 3.70 |
| W-Width | 2.50 |
| B-Slot-Width | 0.984 |
| T-Tongue-Width | |
| F-Bolt-Spacing | 2.362 |
| I-Screw-Size | M20 |
| UNITWGT | |
| WEIGHTUNIT | |
| Set-Ø | |
| S-Key-Slot Width | |
| P-Pitch | |
| Set | |
| M-Thread Size | M8 |
| E-Heel Height | |
| Type | |
| T1-Tongue-Width | |
| # of holes | |
| S1-Step Height | 1.654 |
| D Griping Range Min | 15.276 |
| D Griping Range Max | 20.866 |
| Serration Size | 3.0MM |
| Pad # | |
| Pad ⌀ | |
| Pad T | |
| Pad H | |
| Machine Number & Size | |
| Master Collet Number | |
| Pad Number | |
| Machine Capacity | |
| I.D. Range | |
| AØ (OD) | |
| BØ (ID) | |
| Pin Ø | |
| Pin H | |
| Jaw Stroke | |
| Max Gripping (LBF) | |
| Max Speed (RPM) | |
| F2-Bolt-Spacing 2 | |
| V Height From Chuck Face | |
| Machine Model | |
| RD | |
| HEX | |
| SQ | |
| A Slot Depth | |
