Hard Jaws
Part # Details
Made with 8620 case hardened steel.
Hard jaws are reversible for OD & ID chucking.
All hard jaws are available in one or two step sets.

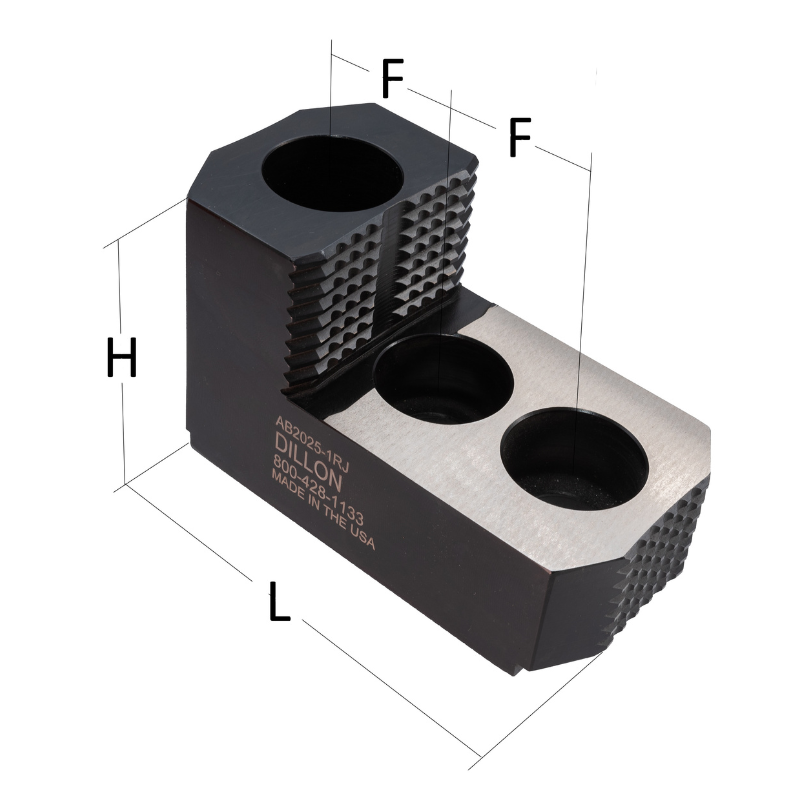

| Name | Ø-Diameter | B-Slot-Width | F-Bolt-Spacing | I-Screw-Size | P-Pitch | L-Length | H-Height | W-Width | Diameter_sort | hf:att:pa_diameter | hf:att:pa_b-slot-width | hf:att:pa_f-bolt-spacing | hf:att:pa_i-screw-size | hf:att:pa_p-pitch | hf:att:pa_l-length | hf:att:pa_h-height | hf:att:pa_w-width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AB24RJ | 24 | 1.102 | 1.500 | M20 | 3/32 x 90° | 5.719 | 3.00 | 2.76 | 24 | 24 | 1-102 | 1-500 | m20 | 3-32-x-90 | 5-719 | 3-00 | 2-76 |
| 630WBRJ | 24 | 1.181 | 1.969 | M24 | 3/32 x 90° | 6.30 | 3.50 | 3.00 | 24 | 24 | 1-181 | 1-969 | m24 | 3-32-x-90 | 6-30 | 3-50 | 3-00 |
| AB2025RJ | 20-25 | 1.004 | 1.500 | M20 | 3/32 x 90° | 5.00 | 3.00 | 2.50 | 22.5 | 20-25 | 1-004 | 1-500 | m20 | 3-32-x-90 | 5-00 | 3-00 | 2-50 |
| AB20RJ | 20+ | 1.102 | 1.500 | M20 | 3/32 x 90° | 5.719 | 3.00 | 2.50 | 20 | 20 | 1-102 | 1-500 | m20 | 3-32-x-90 | 5-719 | 3-00 | 2-50 |
