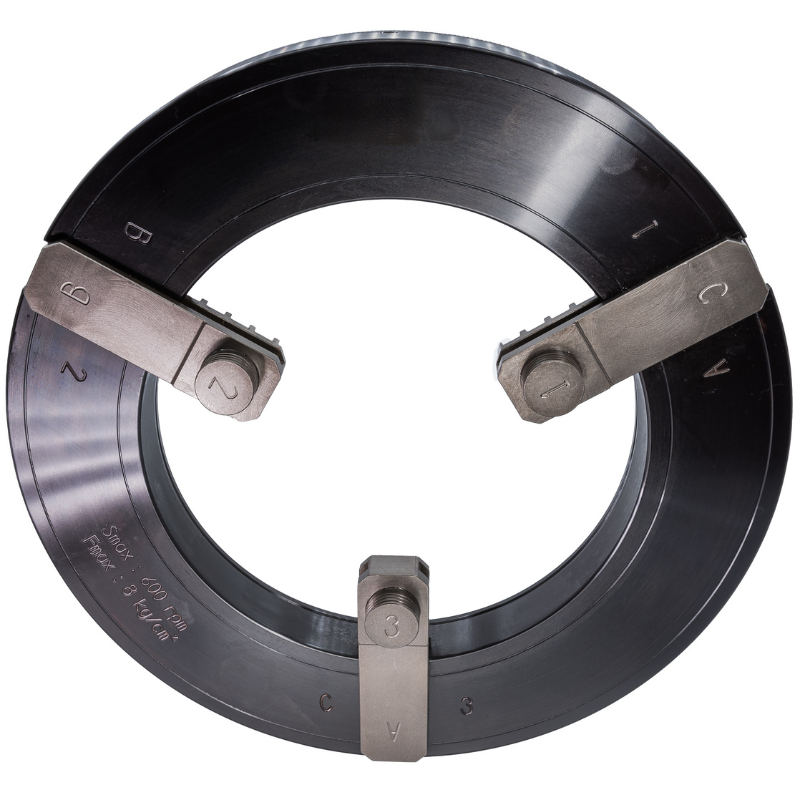

Adjustable Jaw Boring Rings
Adjustable jaw boring ring tools from Dillon Manufacturing allow customers to use a single jaw boring ring to bore a range of chuck diameters while still getting all the same benefits of the diameter-specific boring rings.

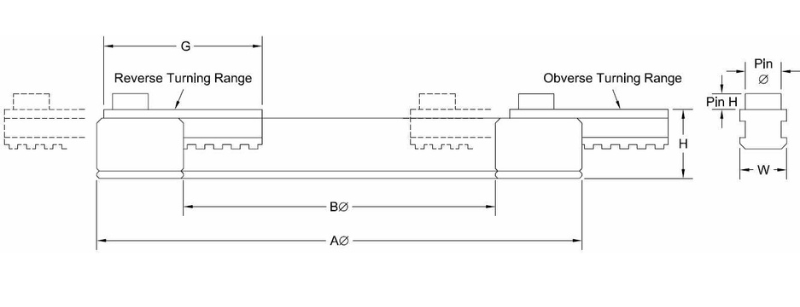

| Name | Aø (OD) | Bø (OD) | Pin ø | Pin H | W-Width | L-Length | Jaw Stroke | Max Gripping (LBF) | Max Speed (RPM) | hf:att:pa_a-dia-od | hf:att:pa_b-dia-id | hf:att:pa_pin-diameter | hf:att:pa_pin-h | hf:att:pa_w-width | hf:att:pa_l-length | hf:att:pa_jaw-stroke | hf:att:pa_max-gripping-lbf | hf:att:pa_max-speed-rpm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DM58FD | 6.693 | 3.937 | 0.512 | 0.276 | 0.748 | 2.402 | 0.291 | 3307 | 800 | 6-693 | 3-937 | 0-512 | 0-276 | 0-748 | 2-402 | 0-291 | 3307 | 800 |
| DM610FD | 7.874 | 4.921 | 0.642 | 0.315 | 0.748 | 2.402 | 0.291 | 3307 | 700 | 7-874 | 4-921 | 0-642 | 0-315 | 0-748 | 2-402 | 0-291 | 3307 | 700 |
| DM812FD | 9.764 | 6.299 | 0.720 | 0.315 | 0.945 | 3.150 | 0.291 | 3858 | 600 | 9-764 | 6-299 | 0-720 | 0-315 | 0-945 | 3-150 | 0-291 | 3858 | 600 |
