Your Dedicated Chuck Jaw Manufacturer

Dillon Manufacturing has built a national reputation as the premier manufacturer of standard and special chuck jaws and accessories using the Dillon Chuck Jaw brand.

We've built this reputation by being a custom manufacturer of special jaws and workholding accessories. We offer competitive pricing on all of our products and our committed team is ready to assist you with any questions on product specifications or anything else you require.

For Dillon Chuck Jaws every order is a "special order" with precise specifications and stringent deadlines.

Standard Hard and Soft Chuck Jaws for Sale

As lathe chuck jaw manufacturers, we can supply our clients with both hard and soft chuck jaws, as well as a variety of custom products and accessories.

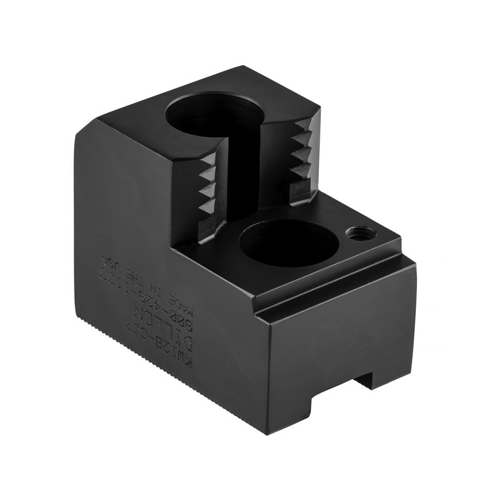

Hard Jaws

Standard Hard Jaws are ideal for general purpose, first operation turning with capabilities to grip a range of diameters. Our hard jaws are made of 8620 alloy steel which is flexible during hardening treatments, thus enabling improvement of case/core properties.

  • This process helps to prevent our hard jaws from fracturing or distorting under strain. Dillon Manufacturing hard jaws are case hardened with ground locating surfaces.
  • The jaws also go through a black oxide process to add corrosion resistance.

Dillon Manufacturing's hard jaws feature diamond-shaped serrations for increased pull down effect which in turn reduces part slippage and push back if a bar feeder is being used. These diamond-shaped serrations are also ideal for cast parts, scaly parts, or parts with imperfections. The diamond-shaped serrations are designed to bite into stock to produce a more stable grip and allow for heavier cuts.

Our special hard jaws are available in the following forms:

Feel free to reach out to our team with any questions about these models.

Special Soft Jaws

Soft top jaws are manufactured using 1018 CRS, but can also be formed from other materials, such as brass, aluminum, S7 tool steel and Delrin. Soft blank top jaws, turned or bored, provide a smooth gripping surface which will not mar the finished surface of the workpiece.

Soft blank top jaws can be removed and later re-used either for the same operation by taking a trueing cut on the gripping surface or by machining an altogether different part until the blank is completely used.

Feel free to reach out to our team with any questions about special soft blank top jaws.

Our Custom CNC Chuck Jaws

Along with the hard and soft chuck jaws stated above, we're also able to facilitate custom orders for our clients tailored to their unique specifications. We provide approval prints for each order, certification of materials, and are able to heat treat upon request.

Custom CNC top jaws can be custom bored, turned or shaped, left soft or hardened by heat treatment. They can be provided in lengths, heights, and widths according to customer requirements. Special CNC top jaws and hard jaws designed to grip specific diameters offer a gripping surface which will accurately contact most of the workpiece both in length and diameter for optimum turning operations.

We are also able to produce rough and semi-finished jaws for machinists, and our processes help to reduce the amount of machining required by parts makers.

The Dillon Manufacturing Difference

At Dillon Manufacturing, we're dedicated to providing the best service available from chuck jaw manufacturers, and we emphasize the following attributes of our business:

  • All of our products are made in the USA
  • ISO 9001:2015 registered
  • Our speed and delivery capabilities
  • Stock and custom jaws
  • Competitive pricing and high quality
  • An experienced quality staff assure products meet your specifications
  • Knowledgeable staff can provide technical input throughout the manufacturing process
  • Heat treatment and metal finishing to almost any specification or type
  • Fully integrated computer system tracks material and production throughout the plant

Contact Dillon Manufacturing for Chuck Jaws Today

If you're in need of reliable chuck jaws for any workholding applications, Dillon Chuck Jaws should be your workholding provider. To lean more, reach out to our team today!
